Building America’s Best Trucks & Truck Bodies
Steel Bodies
Standard Body Options- Build to any length from 10’ up to 24’
ST
| Sides | 3/16” |
| Floor | 3/16” |
| Tailgate | 3/16” |
HD
| Sides | 3/16” |
| Floor | 1/4” |
| Tailgate | 1/4” |
HD-2
| Sides | 3/16” |
| Floor | 1/4” |
| Tailgate | 3/16” |
LD
| Sides | 5/32” |
| Floor | 3/16” |
| Tailgate | 3/16” |

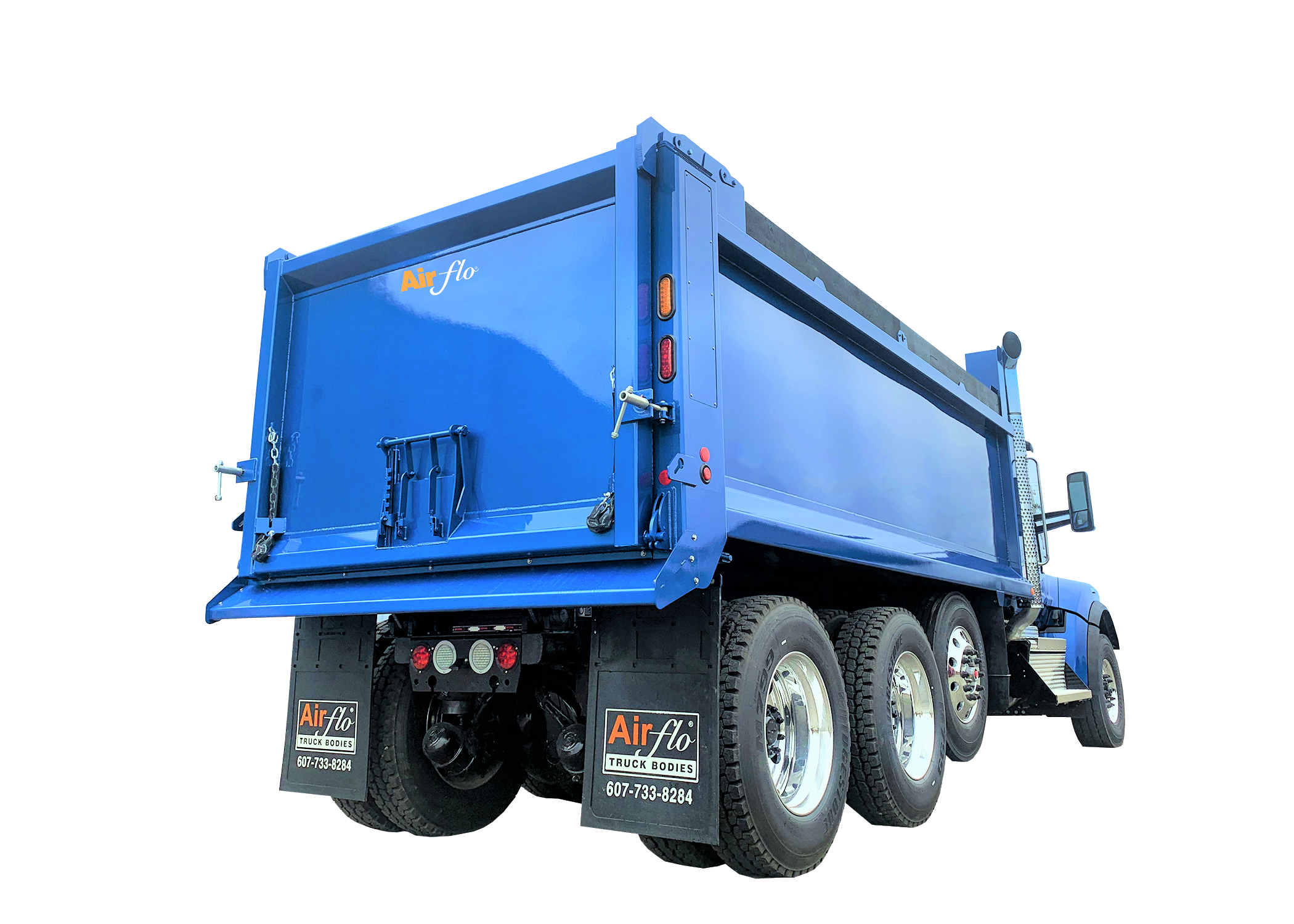

Introducing the new Air-Flo Steel Body Constructed with Hardox Wear Plate
- High strength abrasion resistant Hardox Wear Plate construction
- Build to any length from 10′ up to 24′
- Sides are spring loaded to better handle load stress
- Crossmemberless floor / smooth sided modern design
- Floor and sides flex on impact leaving fewer dings and dents
- Clean understructure leaves no material hang-up, less rust and corrosion
- High strength formed fully-welded longitudinals
- Front trunnion / pin-to-pin telescopic cylinders available
- Empty body rests on rubber shock-absorbing bumpers
- Cylinder features a high-quality wear-resistant guide rings and maintenance free high performance spherical bearings for long life and trouble-free operation
- Hot shift PTO with direct mount pump that is operated with air controls through a feathering valve. The new large dump pump has 25% greater flow and a 37% faster cycle time over the standard 2” dump pump. We use the highest quality hydraulic components to ensure years of heavy-duty service.
- Body is grit blast prepped/epoxy primer/urethane PPG top coated
Steel Body Options:
(Click an option to see picture)

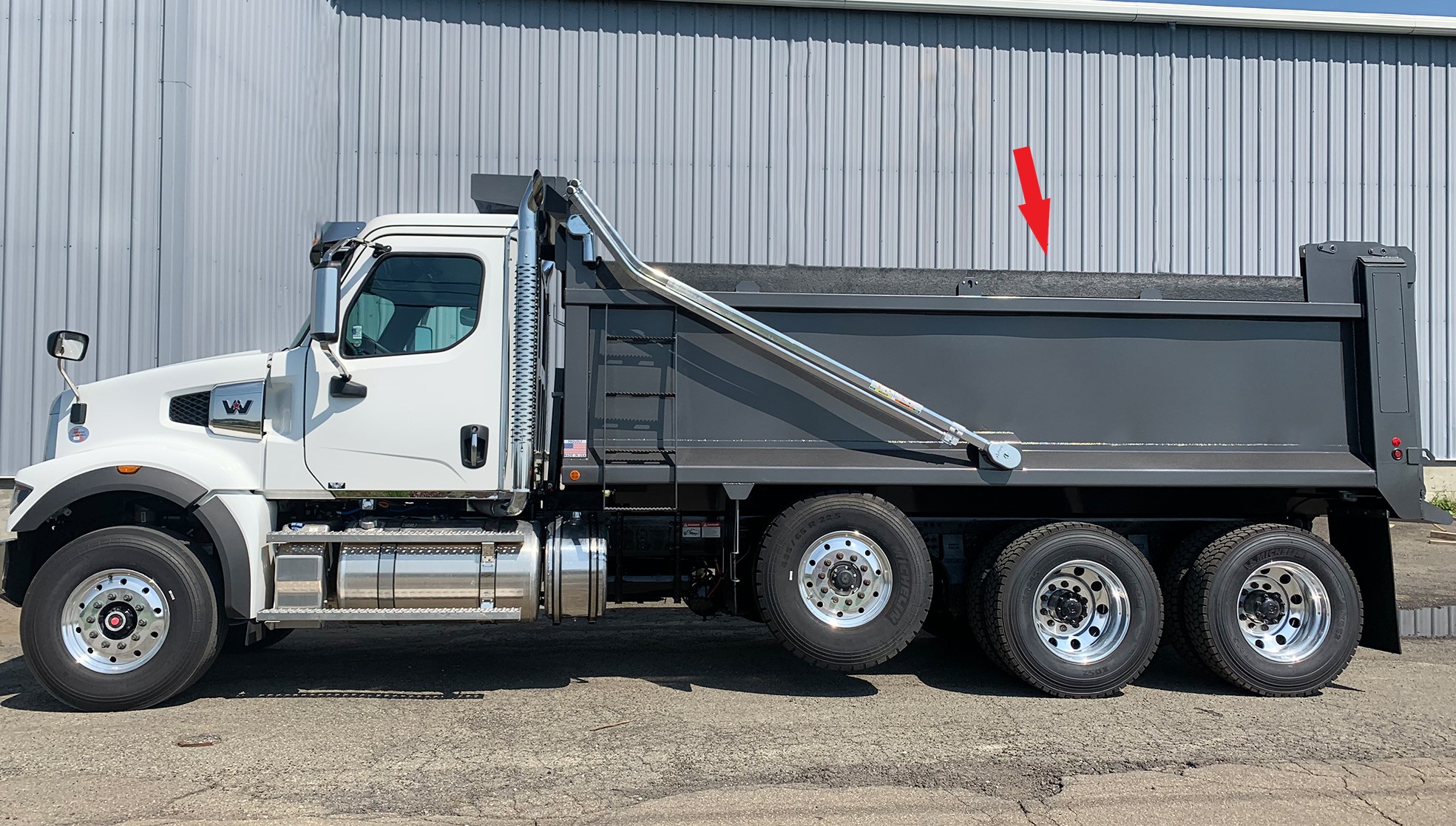

- Side boards
- Sloped Tailgate/Sides

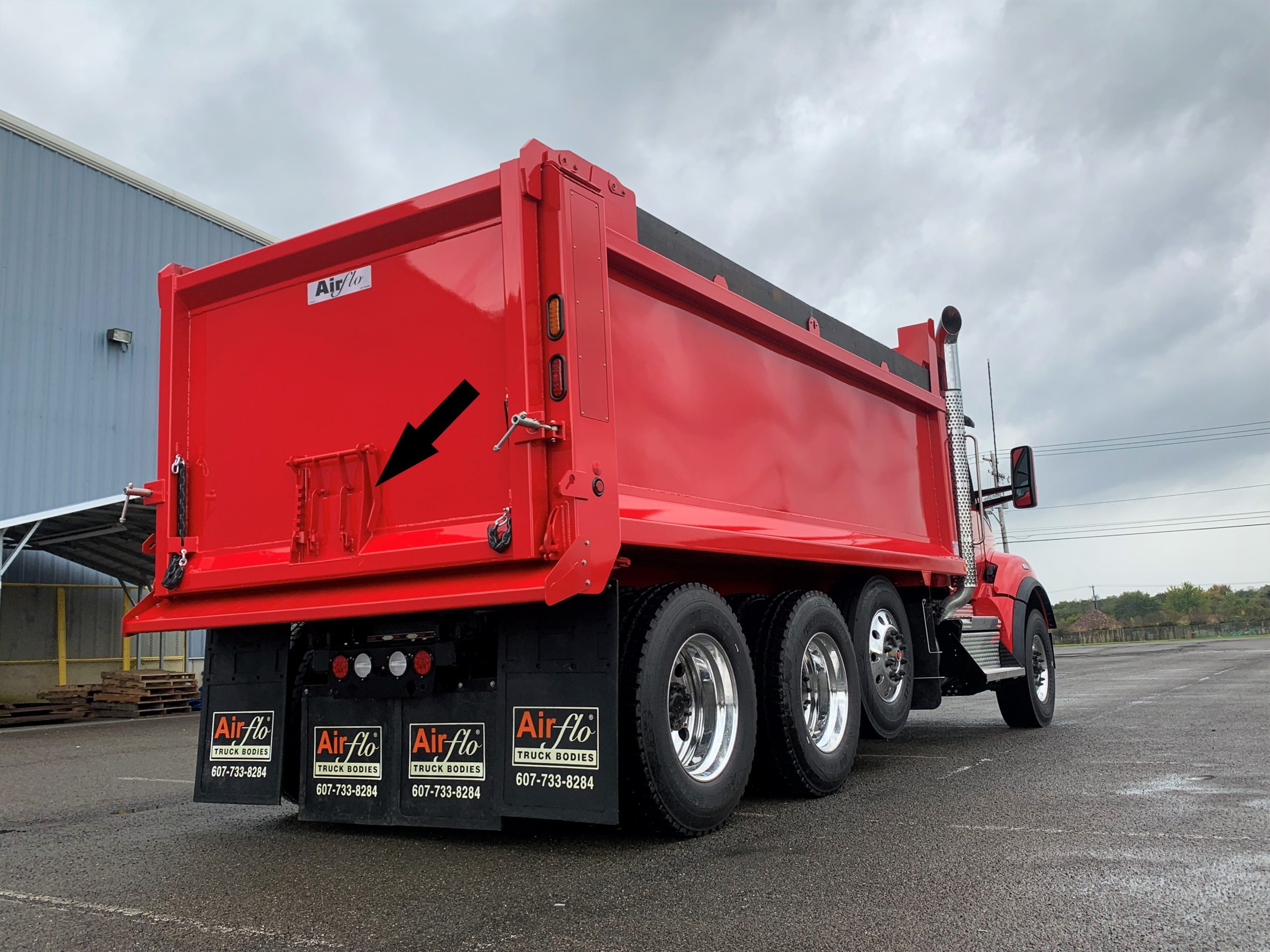

- Coal door(s)
- Salt Locks
- Spreader Apron

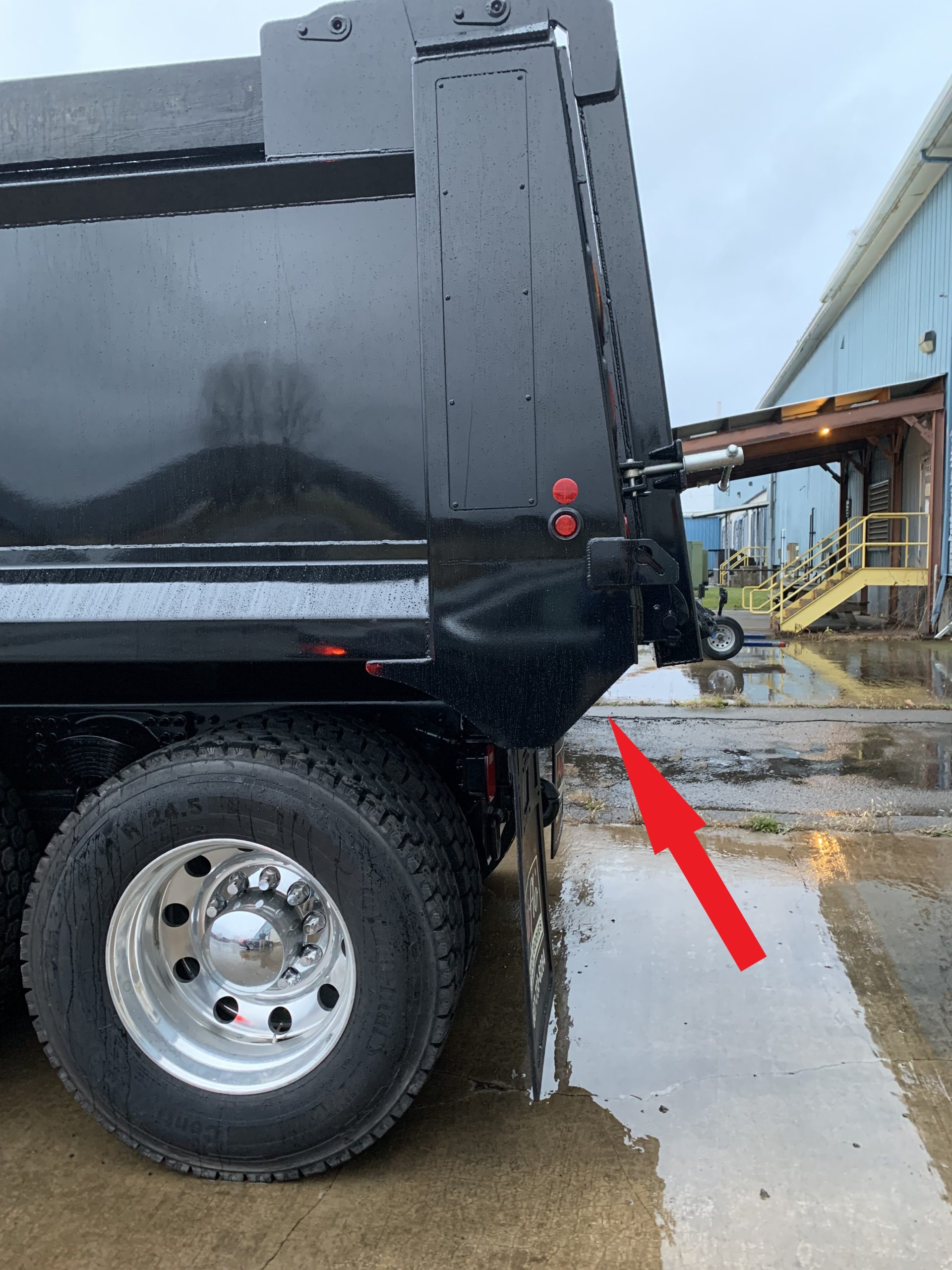

- Asphalt Apron
- Tarp
- Heated Body Kit
- Sealed Tailgate
- Pintle Plate
- LED STTR Lights
- Strobe Lights (Front & Rear)

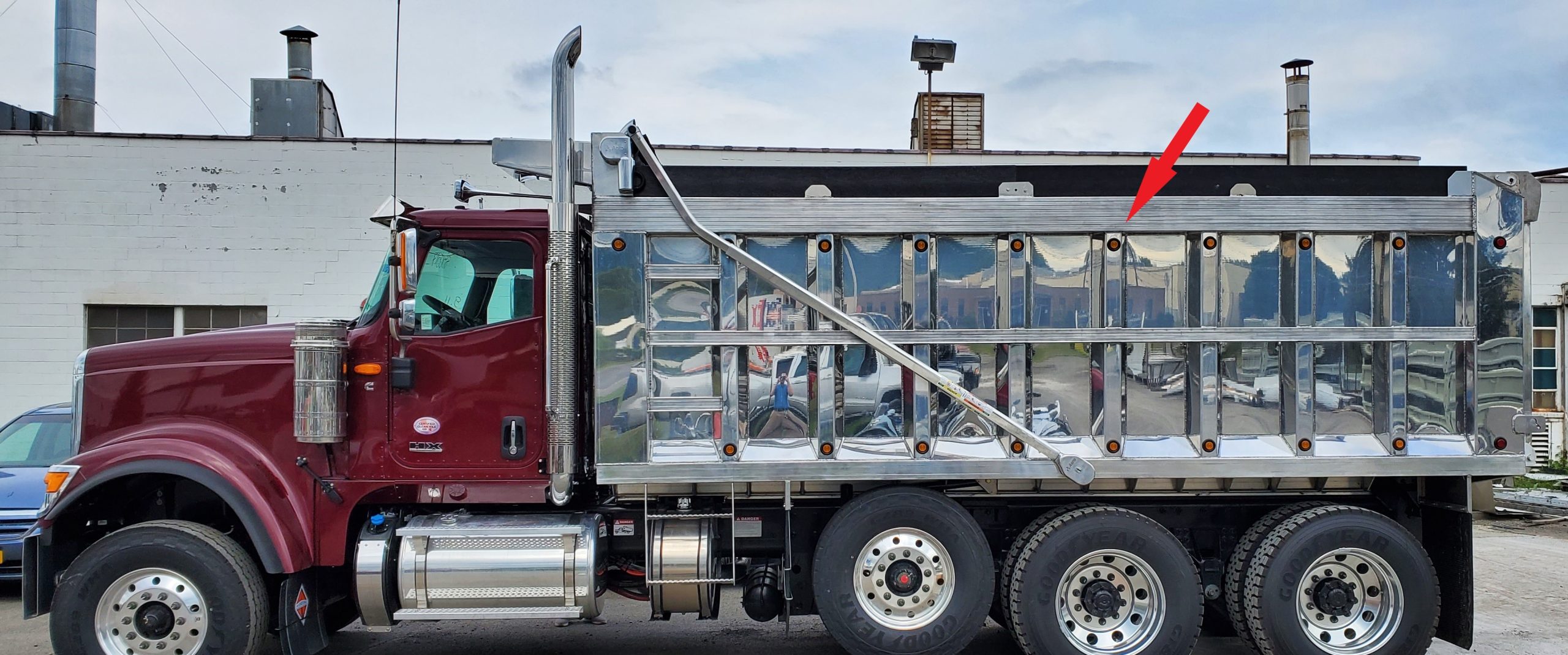

- Gusset Lights
- High Lift Tailgate
- Barndoor Tailgate
- Backup Camera System
- Custom Paint
- Body Vibrator
- Toolbox
- Liner

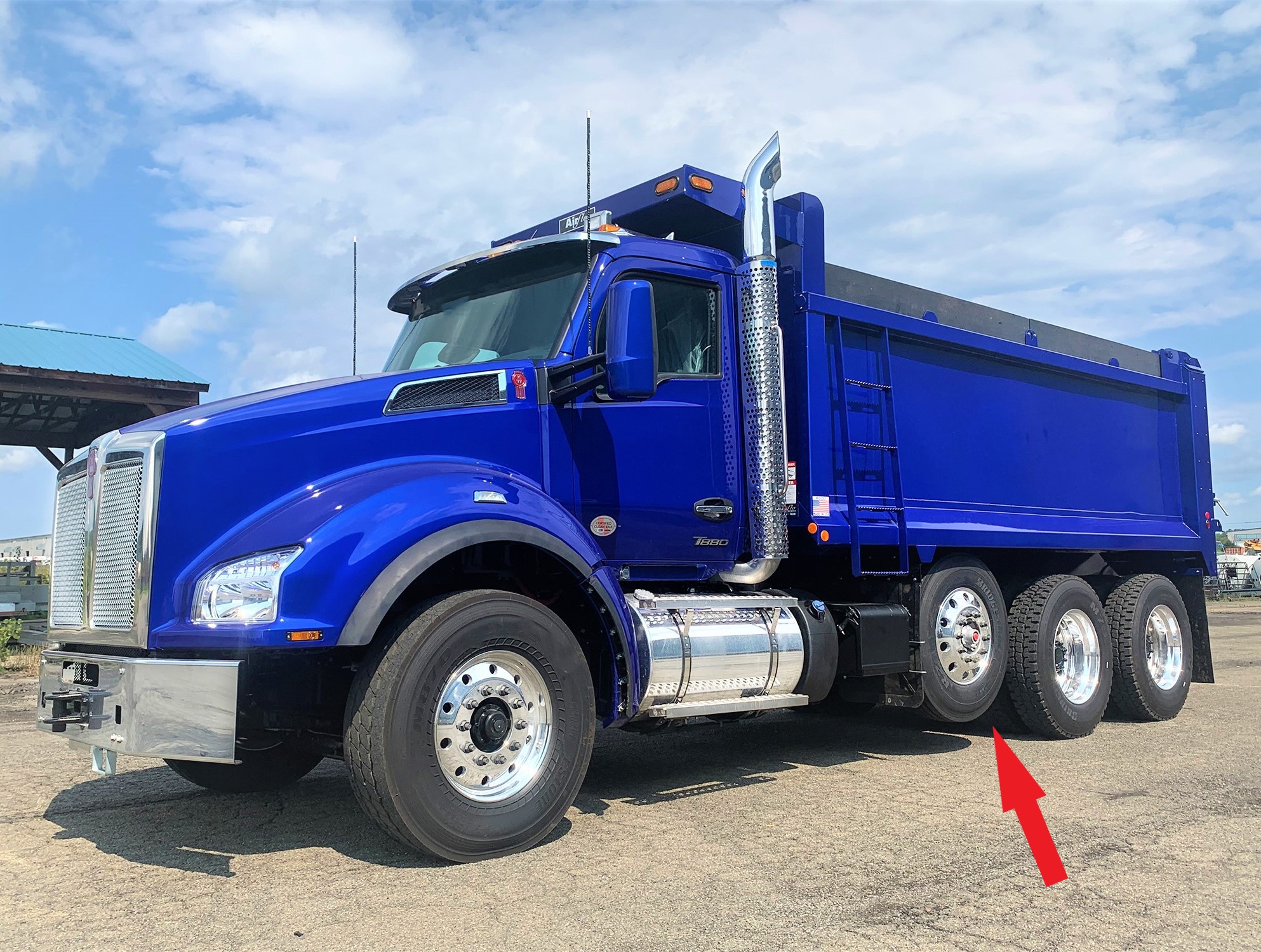

- Lift Axle
| Length | Side Height | Tailgate Height | Body Capacity (Cu. Yd.) | Model Number |
|---|---|---|---|---|
| 10' | 30" | 36" | 7.9 | AFT-10-ST |
| 11' | 30" | 36" | 8.7 | AFT-11-ST |
| 12' | 30" | 36" | 9.5 | AFT-12-ST |
| 13' | 30" | 36" | 10.3 | AFT-13-ST |
| 14’ | 48” | 54” | 14.7 | AFT-14-ST |
| 15’ | 48” | 54” | 15.8 | AFT-15-ST |
| 16’ | 48” | 54” | 16.9 | AFT-16-ST |
| 17’ | 54” | 60” | 20.2 | AFT-17-ST |
| 18’ | 54” | 60” | 21.4 | AFT-18-ST |
| 19’ | 54” | 60” | 22.7 | AFT-19-ST |
| 20’ | 54” | 60” | 23.9 | AFT-20-ST |
| 21’ | 54” | 60” | 25.1 | AFT-21-ST |
